AM-MWDTDC

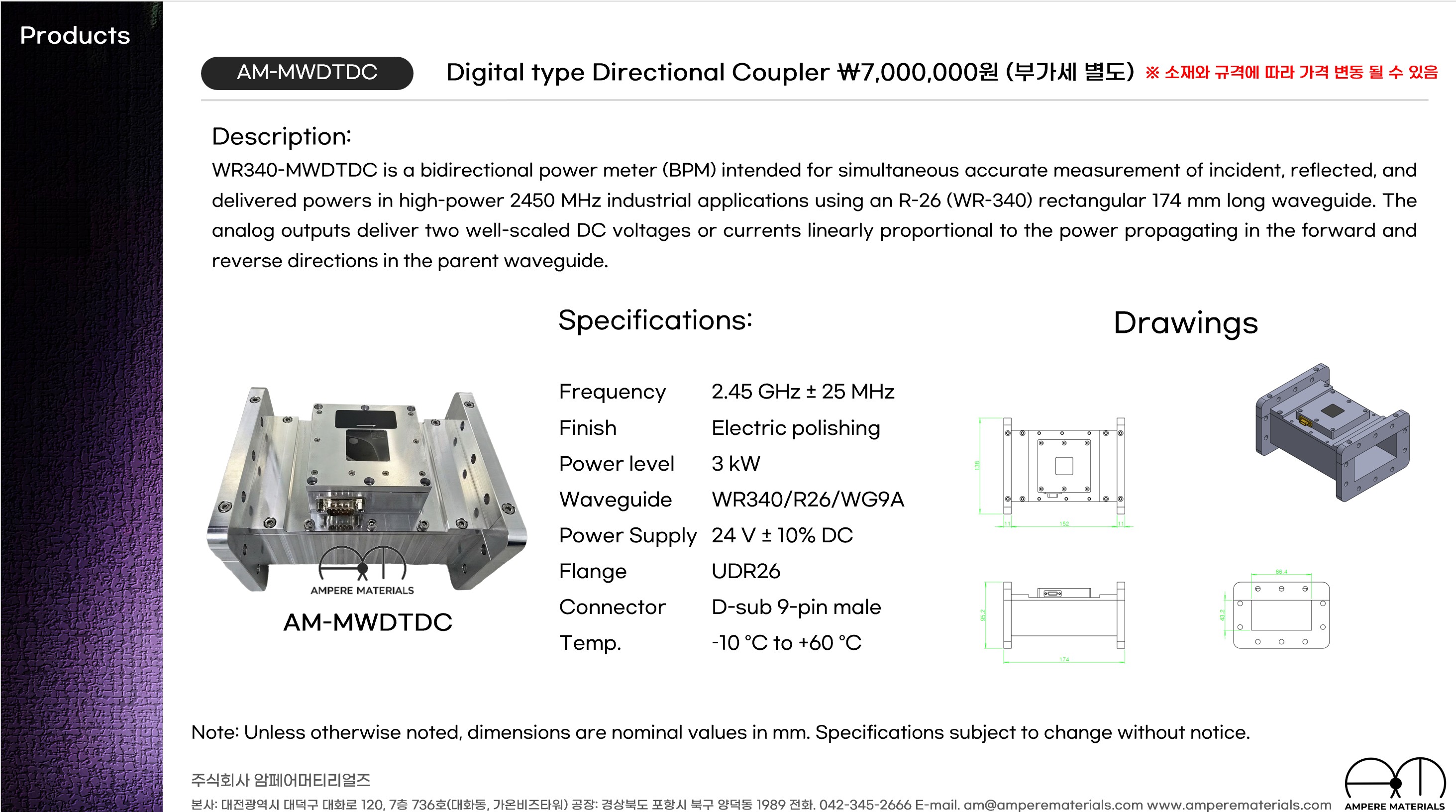

WR340-MWDTDC is a bidirectional power meter (BPM) intended for simultaneous accurate measurement of incident, reflected, and delivered powers in high-power 2450 MHz industrial applications using an R-26 (WR-340) rectangular 174 mm long waveguide. The analog outputs deliver two well-scaled DC voltages or currents linearly proportional to the power propagating in the forward and reverse directions in the parent waveguide.

본문

WR340-MWDTDC is a bidirectional power meter (BPM) intended for simultaneous accurate measurement of incident, reflected, and delivered powers in high-power 2450 MHz industrial applications using an R-26 (WR-340) rectangular 174 mm long waveguide. The analog outputs deliver two well-scaled DC voltages or currents linearly proportional to the power propagating in the forward and reverse directions in the parent waveguide.
